Verified Fitment
| Brand | Model | Year | Variant / type code |
|---|---|---|---|
| BYD | Bao 5 | 2023 | Type 30 R20 Power Side-Steps, Tow-Hook (Shoal-Green) |
| BYD | Bao 5 | 2024 | Type 30 R20 Power Side-Steps, Tow-Hook (Dark Interior Special) |
| BYD | Bao 5 | 2025 | Type 30 R20 Power Side-Steps, Tow-Hook (Dark Interior Special) |
| BYD | Bao 5 Player | 2024 | All versions |
| BYD | Bao 5 Player | 2025 | All versions |
| BYD | Bao 5 Smart Driving | 2024 | All versions |
| BYD | Bao 5 Smart Driving | 2025 | All versions |
| BYD | Bao 5 Smart Driving | 2026 | All versions |
| BYD | Dolphin | 2021 | All versions |
| BYD | Dolphin | 2022 | All versions |
| BYD | Dolphin | 2023 | All versions |
| BYD | Dolphin | 2024 | All versions |
| BYD | Dolphin | 2025 | All versions |
| BYD | New e6 | 2020 | All versions |
| BYD | New e6 | 2021 | All versions |
| BYD | New e6 | 2022 | All versions |
| BYD | New e6 | 2023 | All versions |
| BYD | New e6 | 2024 | All versions |
| BYD | New e6 | 2025 | All versions |
| BYD | New e6 | 2026 | All versions |
20 vehicle versions. Scroll inside the box to see them all. Type codes are printed on the vehicle identification plate. Not sure? Send us the number from the old part over WhatsApp and we confirm it against the factory catalogue before you order.
Refrigerant Module for Fangchengbao Bao 5 & New e6, OE 13685237-00
Price shown without any local sales tax. Shipping is calculated at checkout. Import taxes and duty in Hong Kong SAR are not included and may be charged when the parcel arrives.
About This Part

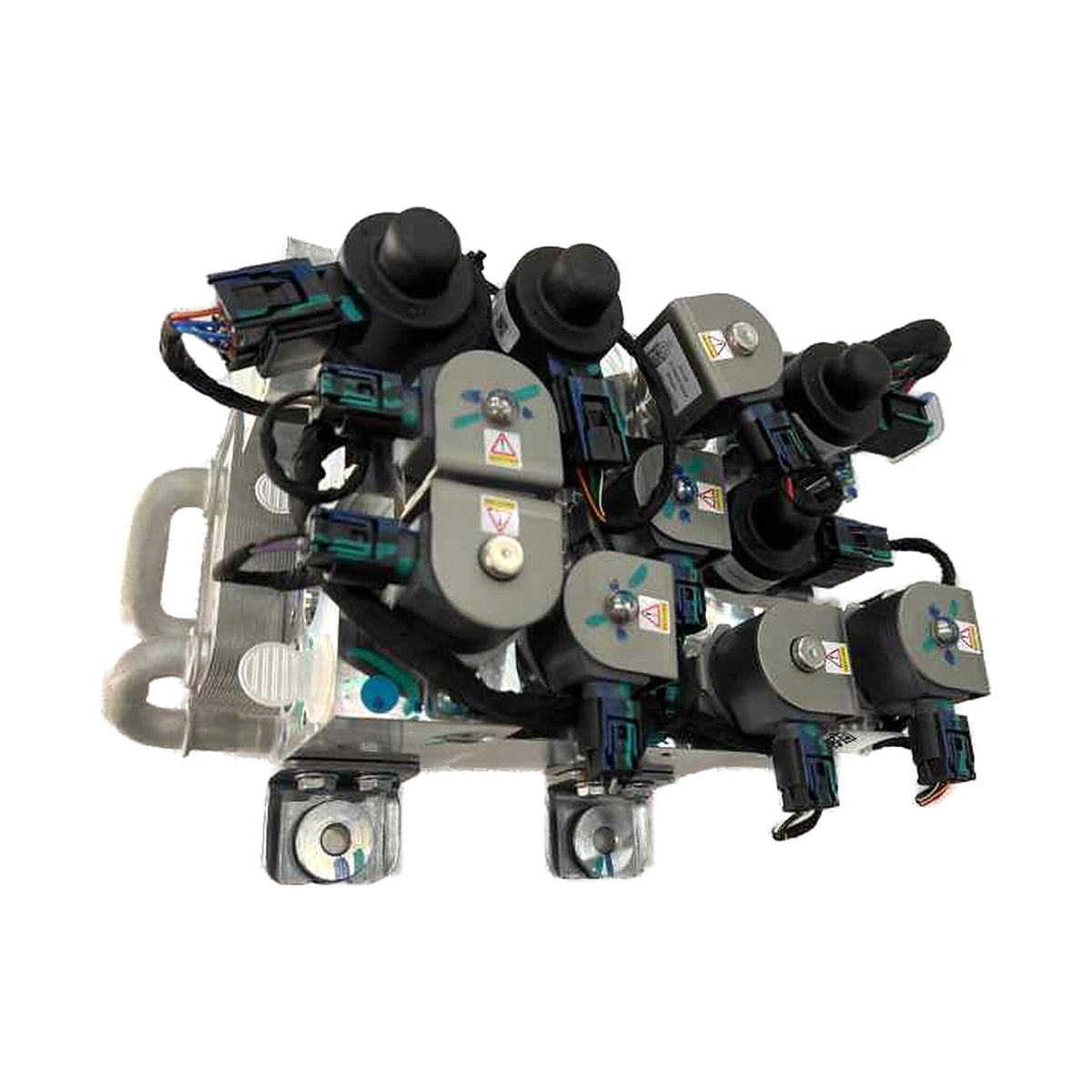

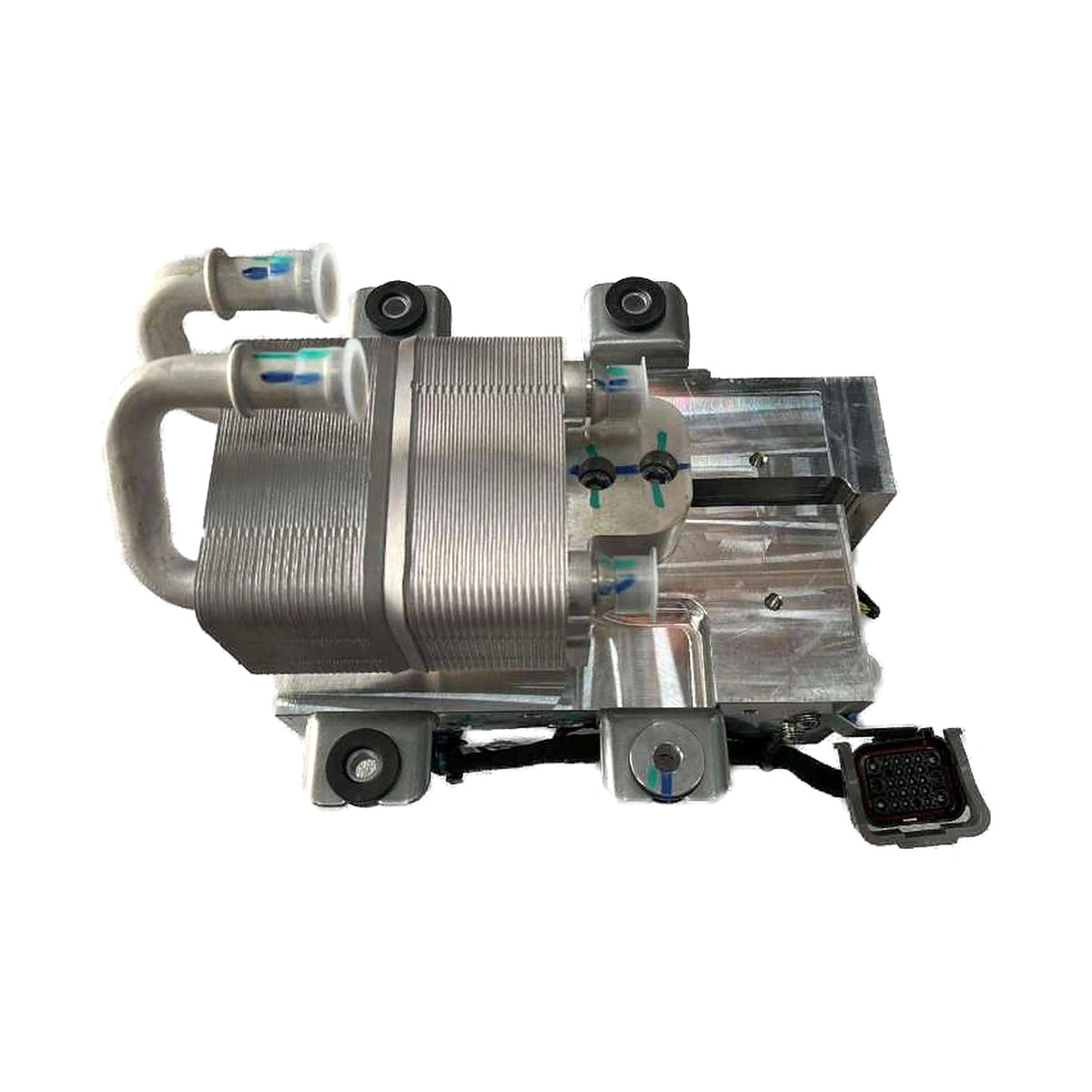

Refrigerant-side integrated module for the BYD group thermal system, OE 13685237-00 (part number SFHB-8109600). This aluminium unit packages the refrigerant chiller, heat exchanger block and coolant ports with a sealed multi-pin control connector, tying the A/C circuit into the battery and cabin cooling loops. It fits the Fangchengbao Bao 5 Smart Driving 2024-2026, BYD New e6 2020-2026, Fangchengbao Bao 5 Player 2024-2025 and more across BYD group models. Also called a refrigerant integrated module or A/C chiller module, it feeds the heater coolant and A/C lines.
Technical Details
| Specification | Value |
|---|---|
| Condition | New |
| Quality line | Original/Genuine |
| Material | Metal |
| Mounting position | Engine Bay |
| Amount in delivery | 1 piece |
| Specification | Value |
|---|---|
| OE references | 13685237-00 · SFHB-8109600 |
| Approx. weight (packed) | Under 4.5 kg |
| Approx. packaging dimensions | 37 x 26 x 22 cm |
| Country of origin | China |
| Vehicle type | Passenger Car |
| Transport class | Restricted, controlled route |
Packaging dimensions and weight are approximate and for orientation only. Delivery for this part is quoted per destination.
Frequently Asked Questions: OE 13685237-00
Can I buy this refrigerant module online, or do I need a quote?
This refrigerant module is quoted rather than sold at a fixed online price. Delivery time is confirmed with your quote. Before you request one, open the fitment table on this page and check that OE number 13685237-00 matches your Fangchengbao Bao 5 or New e6, so the quote is raised against the right part from the start.
What if the number on my old part is not 13685237-00?

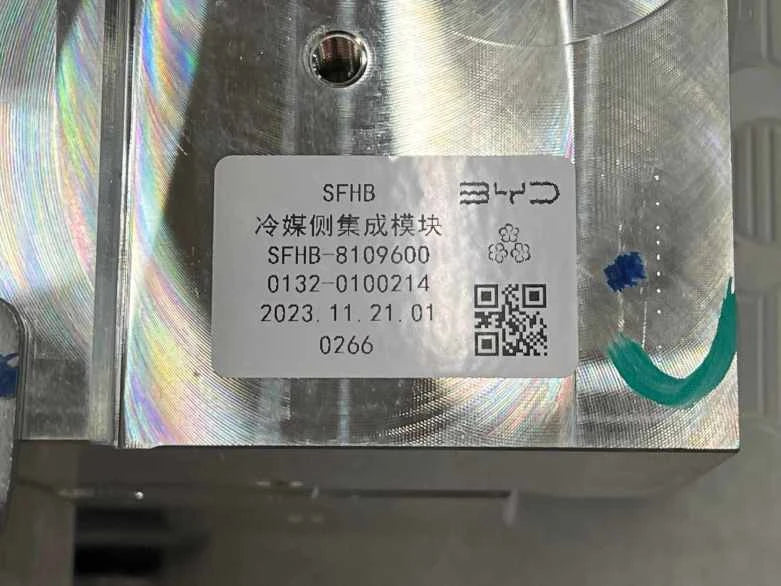

A different number on your old unit does not automatically rule this one out, because this module is also listed as SFHB-8109600 alongside its main OE number 13685237-00. Do not rely on the number on its own. Instead, compare the shape and the connections on your old part against the photographs on this page, and look for both numbers before deciding either way. If nothing on the photographs matches what you are holding, treat that as a clear no rather than a maybe, and keep looking rather than ordering on a guess.
What is this module made of and does that affect fitting it?
This is a metal refrigerant module rather than a rubber hose, so it holds its shape and connects at fixed points rather than being flexed into place. Only one version is listed for the Bao 5 and New e6, under OE number 13685237-00. Check that number against the one stamped on your old unit before ordering, since a metal assembly like this needs to match exactly. If you are unsure which model year you have, use the quote route on this page and a member of staff will confirm it against your details.
Where does this refrigerant module fit on the car?
It sits in the engine bay, within the HVAC and climate system, alongside the hoses, valves and sensors it connects to. Before ordering, look at the number stamped on the part you are removing from the car and compare it against OE number 13685237-00, since that number is the surest way to confirm this is the correct module for your Fangchengbao Bao 5 or New e6.
Related Parts
How Ordering Works
Send your delivery country using the button above and we come back, within 24 hours and usually sooner, with one delivered price: the part, carriage on a route certified for this class of goods, and the import duty and VAT that apply where you are. If you go ahead, we prepare the transport documentation and you get tracking from dispatch.
