Throttle Body & Manifold

Very likely, and cleaning it is the first move rather than replacing it. Carbon and oil mist from the crankcase ventilation system build up around the butterfly and in the bore, changing the airflow at the small openings the control unit uses at idle. Clean it with a proper throttle cleaner and a soft cloth, taking care not to scrub any coating off the bore or force the butterfly, then perform the idle relearn. A large proportion of hunting idle complaints end there.

It is the procedure that lets the control unit measure where the closed throttle position now sits and how much air passes at idle, so it can hold the target speed. After cleaning, replacing or disconnecting a throttle body, its old adaptation values no longer match reality, which shows as a high, low or unstable idle. Run the relearn on a fully warmed engine with no other faults stored, since a cold engine or an unrelated code will prevent the procedure completing.

Usually one of three things. The adaptation was not relearned, so the unit is working from values that describe the dirty throttle. The gasket or O ring under the throttle body was reused and is now leaking, adding unmetered air. Or cleaner was sprayed into a sensor or onto a coated bore surface and damaged it. Fit a new gasket as a matter of course, keep cleaner away from sensors, and run the relearn on a warm engine before concluding anything is wrong.

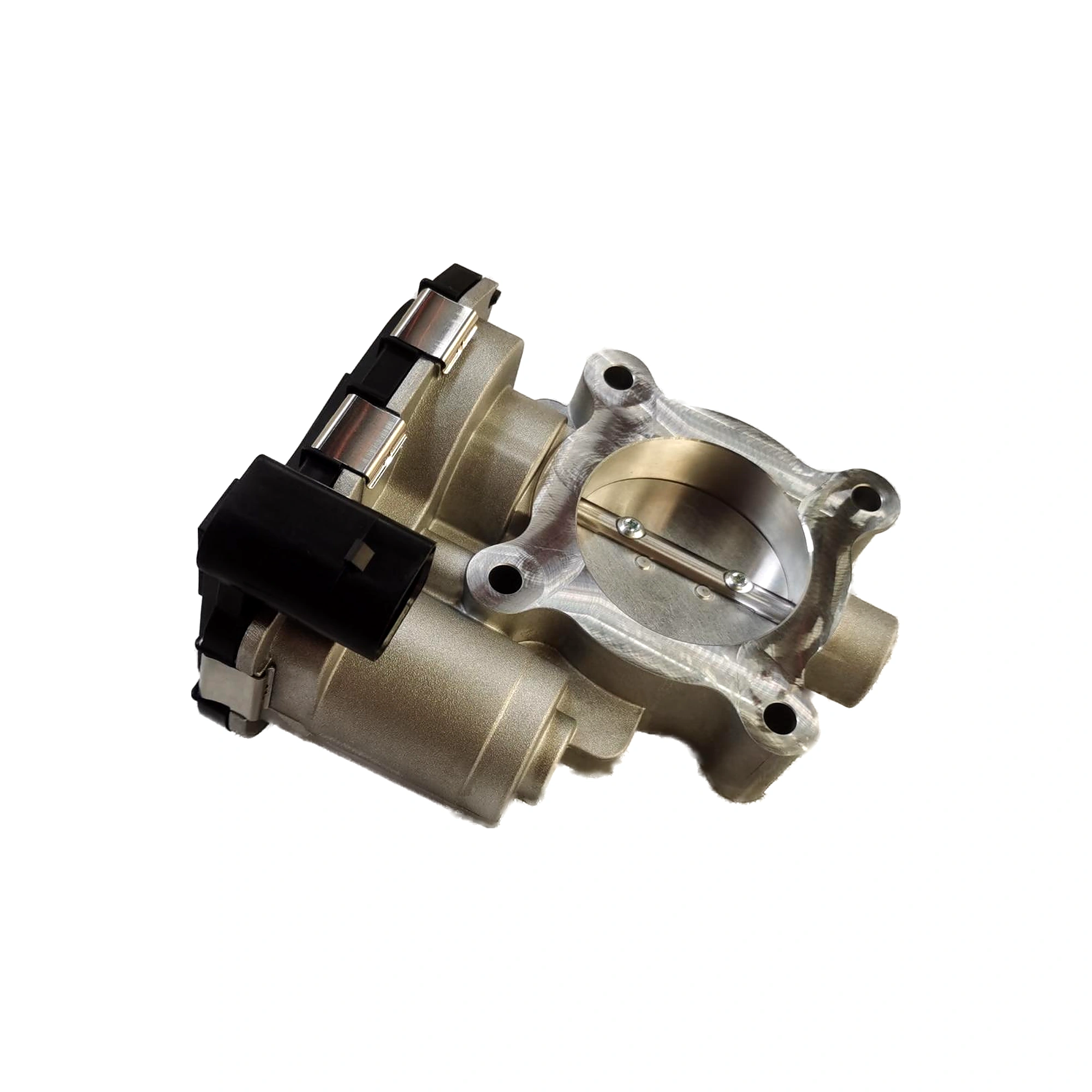

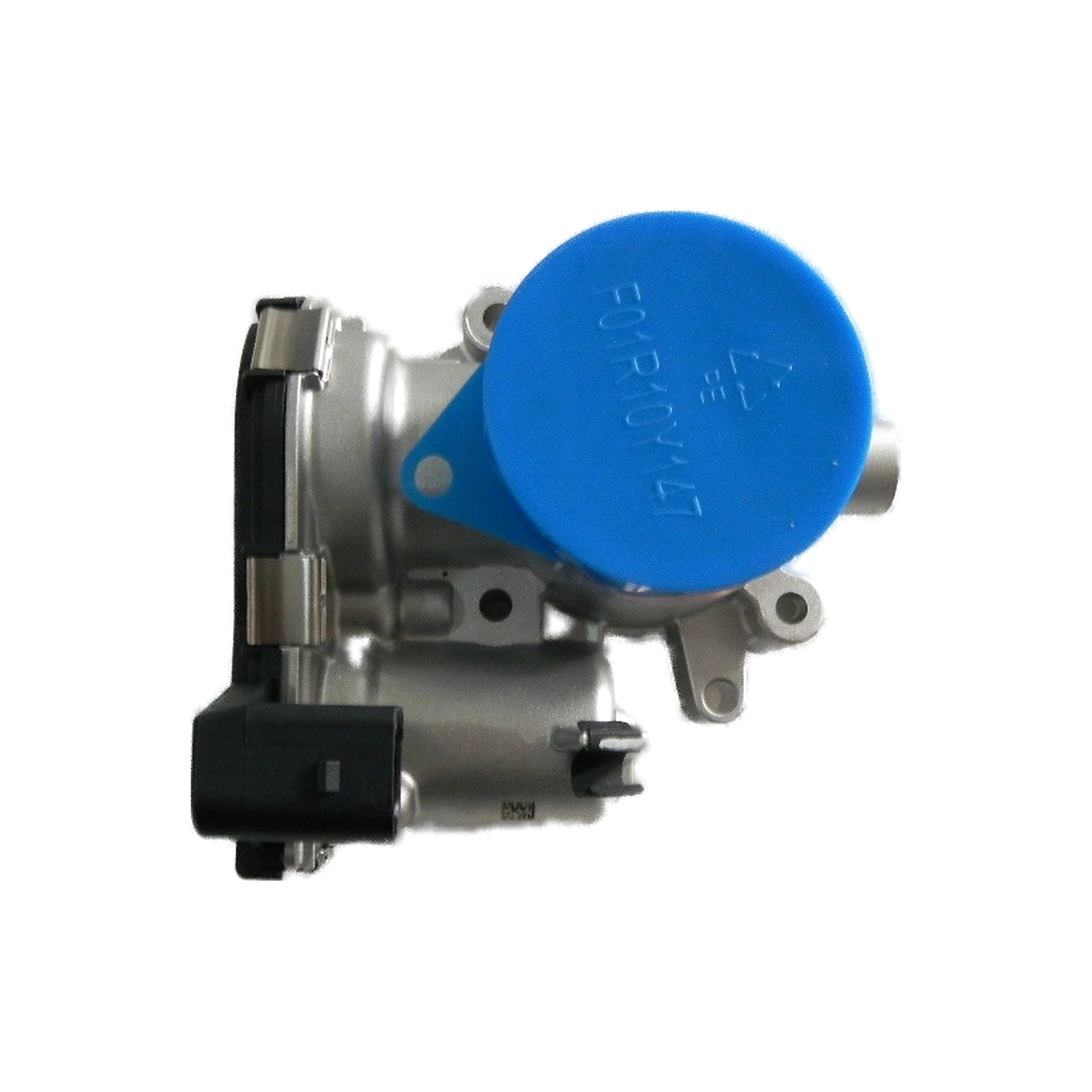

On an electronic throttle system, most often a disagreement between the two position sensors in the throttle body or between the two tracks in the accelerator pedal. The control unit cannot tell which input is honest, so it limits torque rather than acting on a possibly false request. The code identifies whether the pedal or the throttle body is reporting the disagreement. Check the wiring and connectors before ordering, since a chafed loom produces the same fault at a fraction of the cost.

Cleaning is straightforward on most engines: remove the intake duct, clean the bore and both faces of the butterfly with the correct product, and refit with a new gasket. Replacement is equally simple mechanically. What both need afterwards is the relearn, which on many vehicles requires a scan tool, and on others is a defined ignition and pedal sequence. Check which applies to your vehicle before starting, because an unadapted throttle can leave the car idling badly.

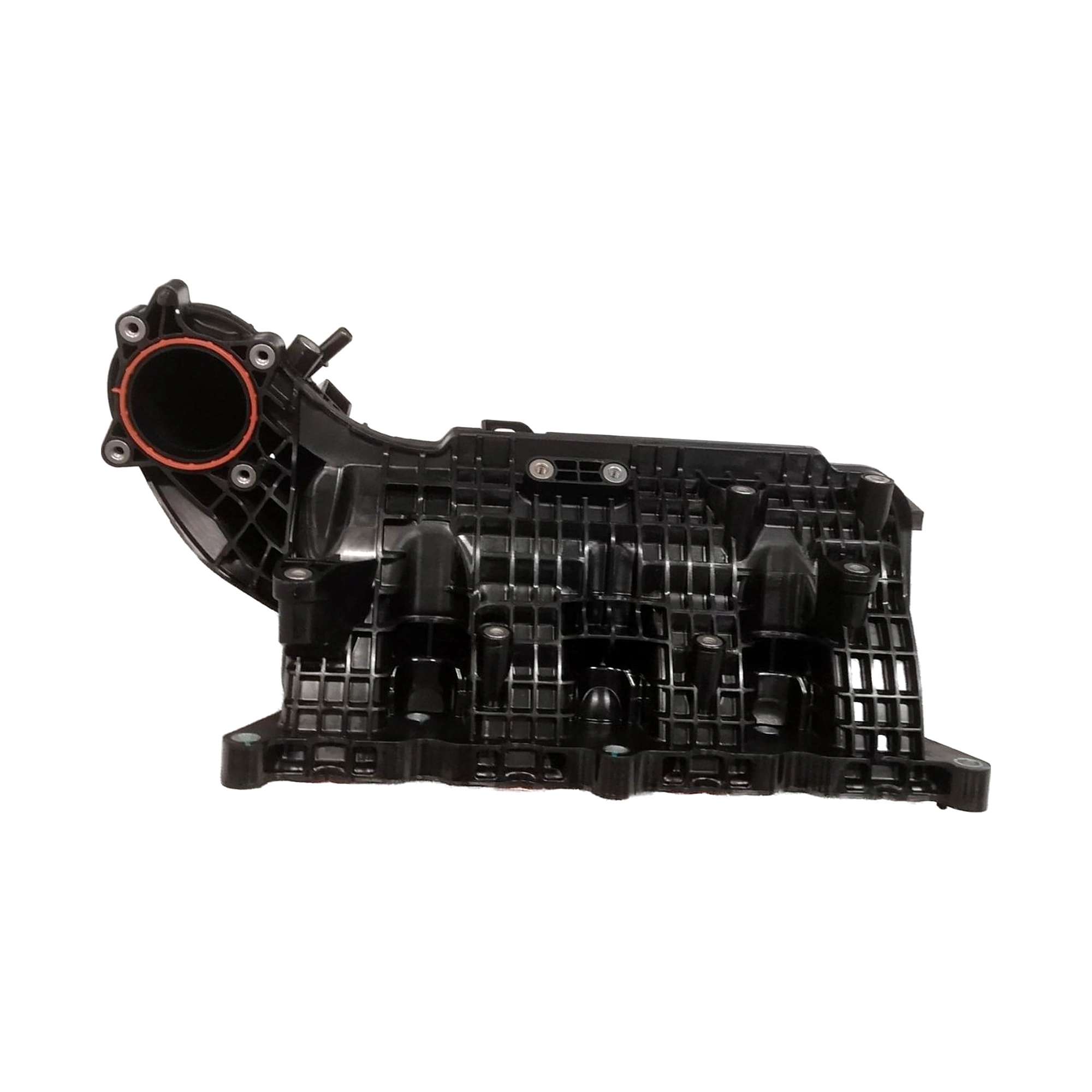

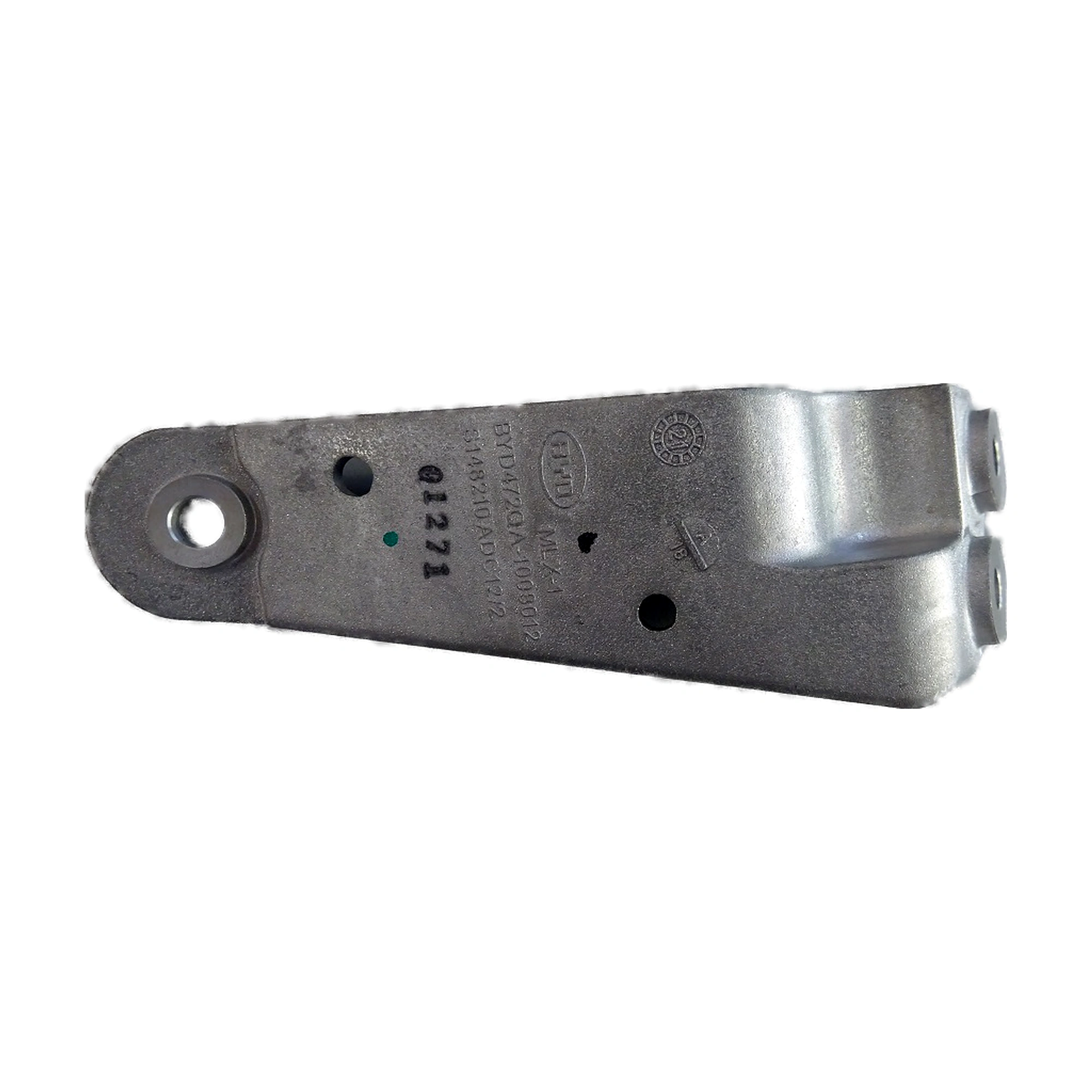

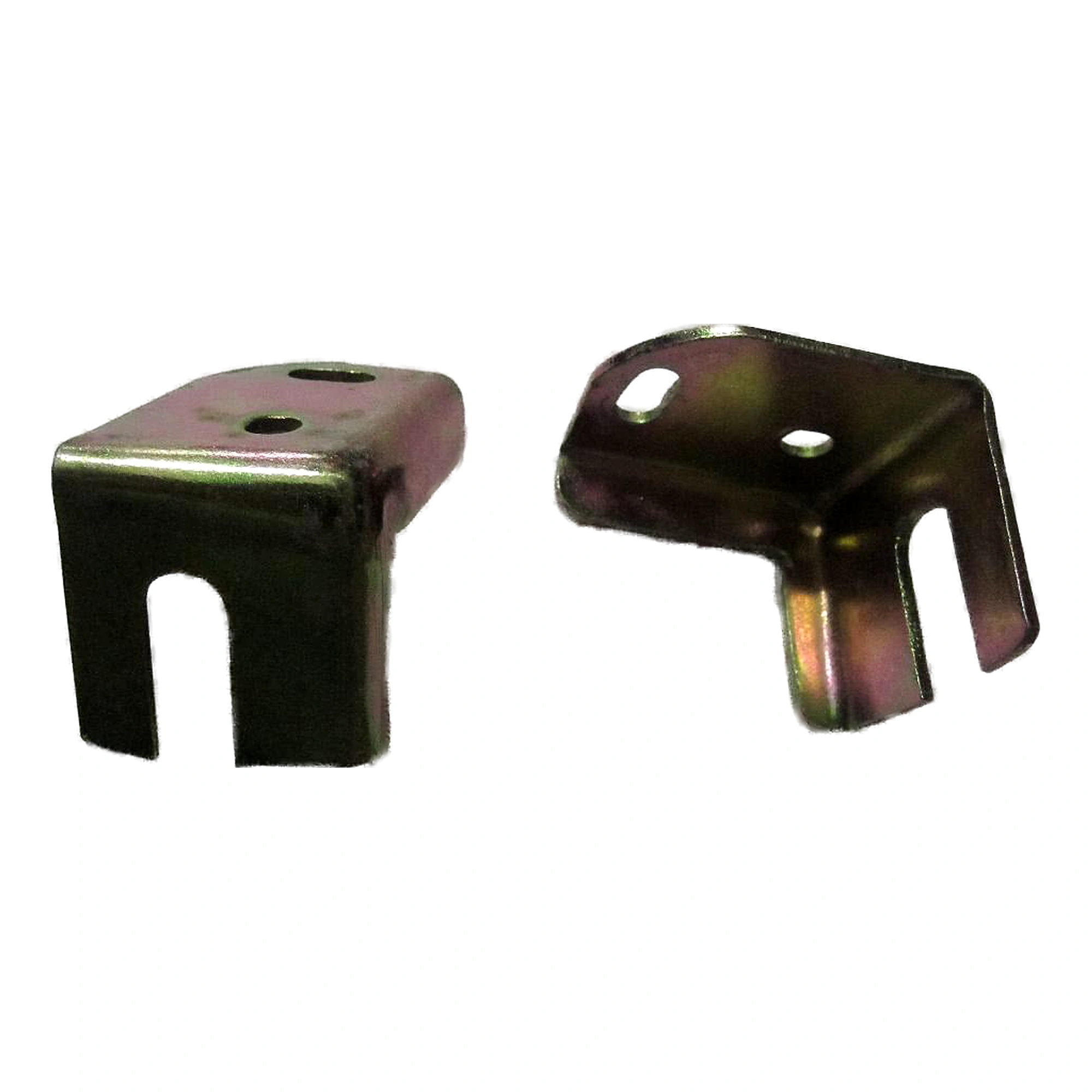

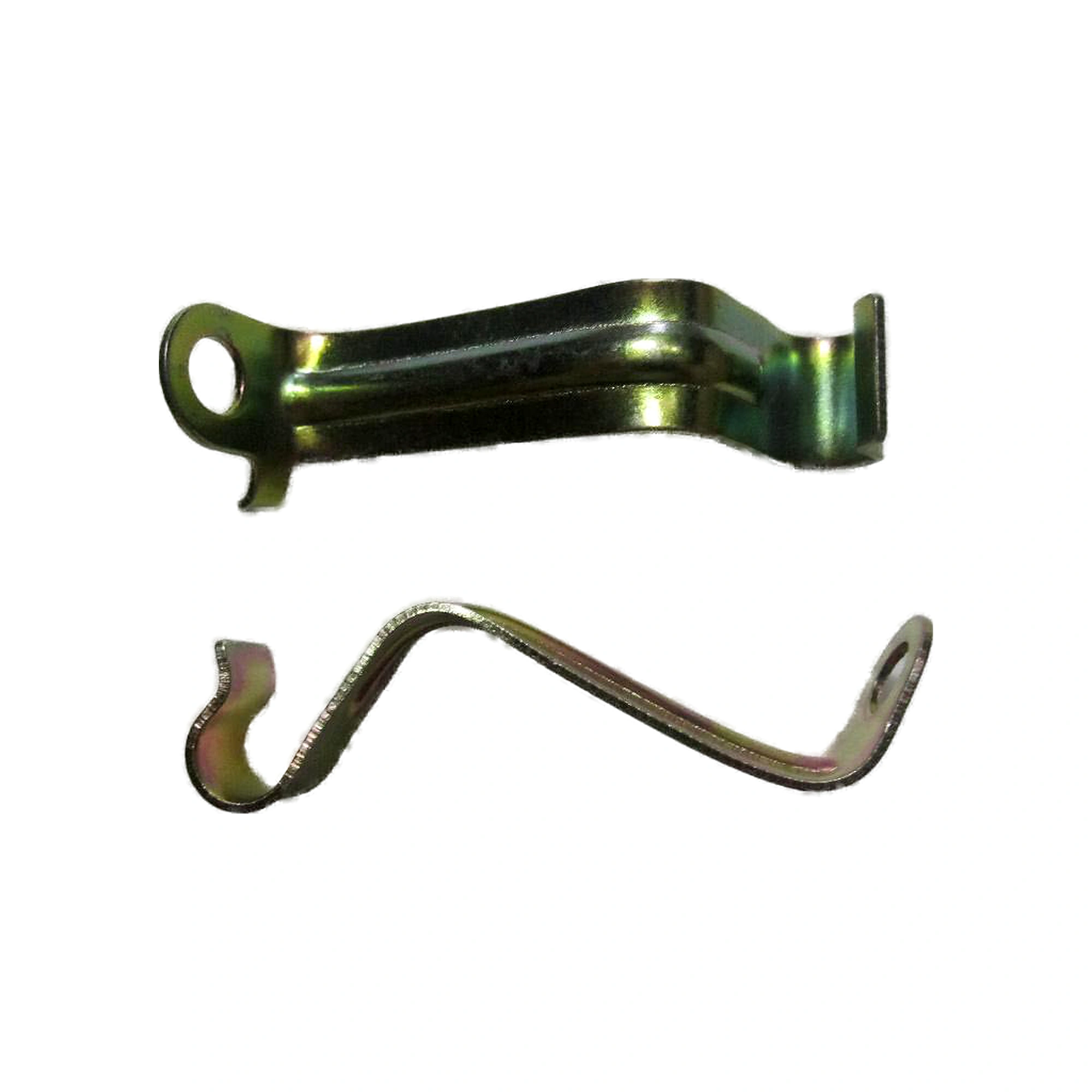

Gaskets, spacer blocks and brackets barely register. Accelerator cables on the older applications are similarly cheap. Throttle bodies are the middle of this category, with electronic units costing more than cable operated ones because of the motor and position sensors inside. Intake manifolds, particularly plastic ones with variable geometry flaps, are the expensive end. The live range for the group is shown above. Before spending on a manifold, have the flap actuator checked separately, since on many designs it is a serviceable item and the manifold need not be replaced at all.

Rarely, and the differences are hidden. Bore diameter is matched to the engine's airflow, the connector pinout and the sensor output scaling must match what the control unit expects, and some units carry integrated idle passages or heating. A throttle body that bolts on and reports on a different scale gives a car that runs, badly, with no obvious cause. Match the OE number from your own unit, and use the quote form where the reference brings back nothing.

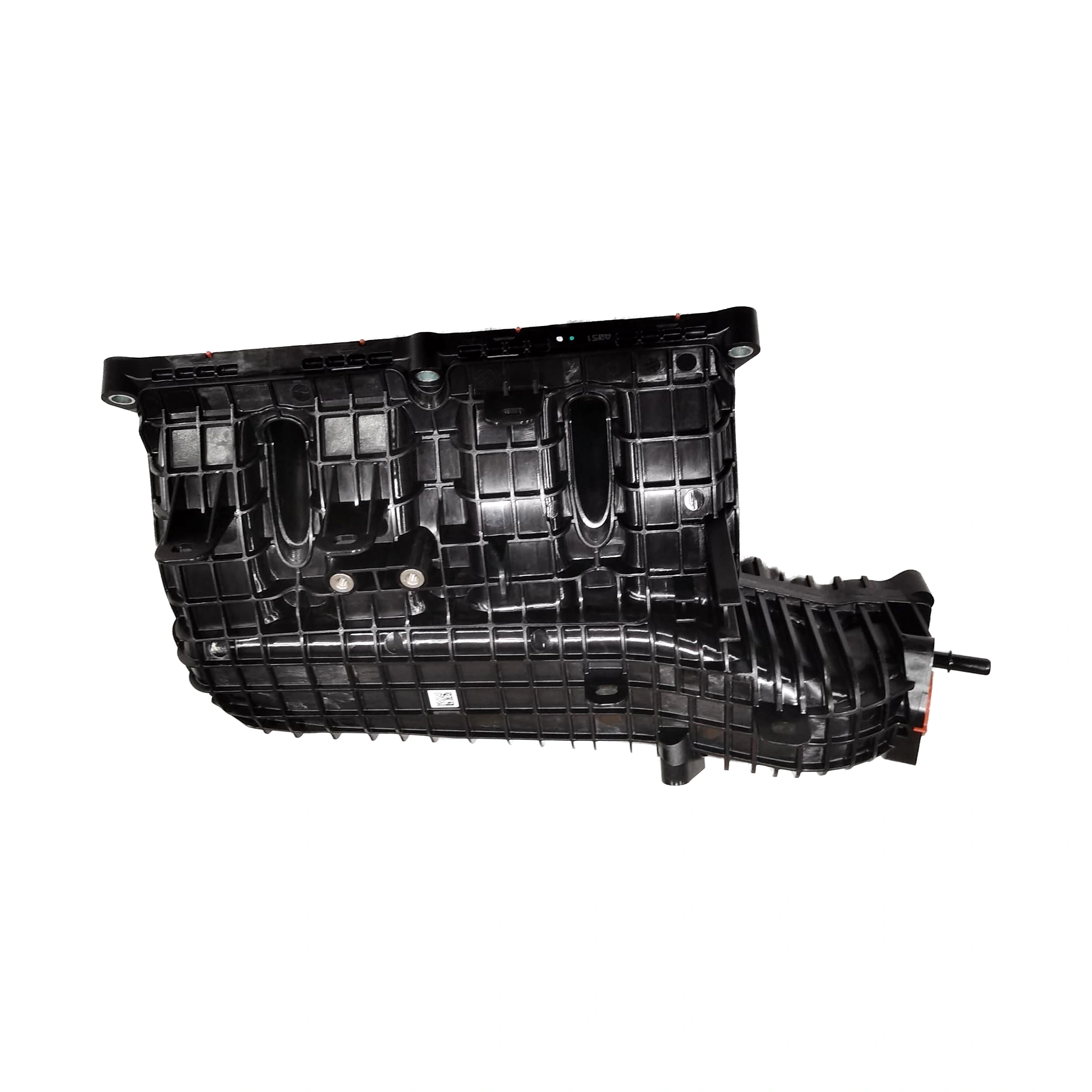

They are flaps inside the runners that change the effective runner length or induce swirl, giving better cylinder filling at low engine speeds and better breathing at high ones. Their weakness is mechanical: linkages wear, actuator arms crack and position sensors drift, and because they sit in the airstream they collect deposits. The result is a fault code and a flat spot rather than a dramatic failure. Where the flaps are integral to the manifold, the manifold is the part.

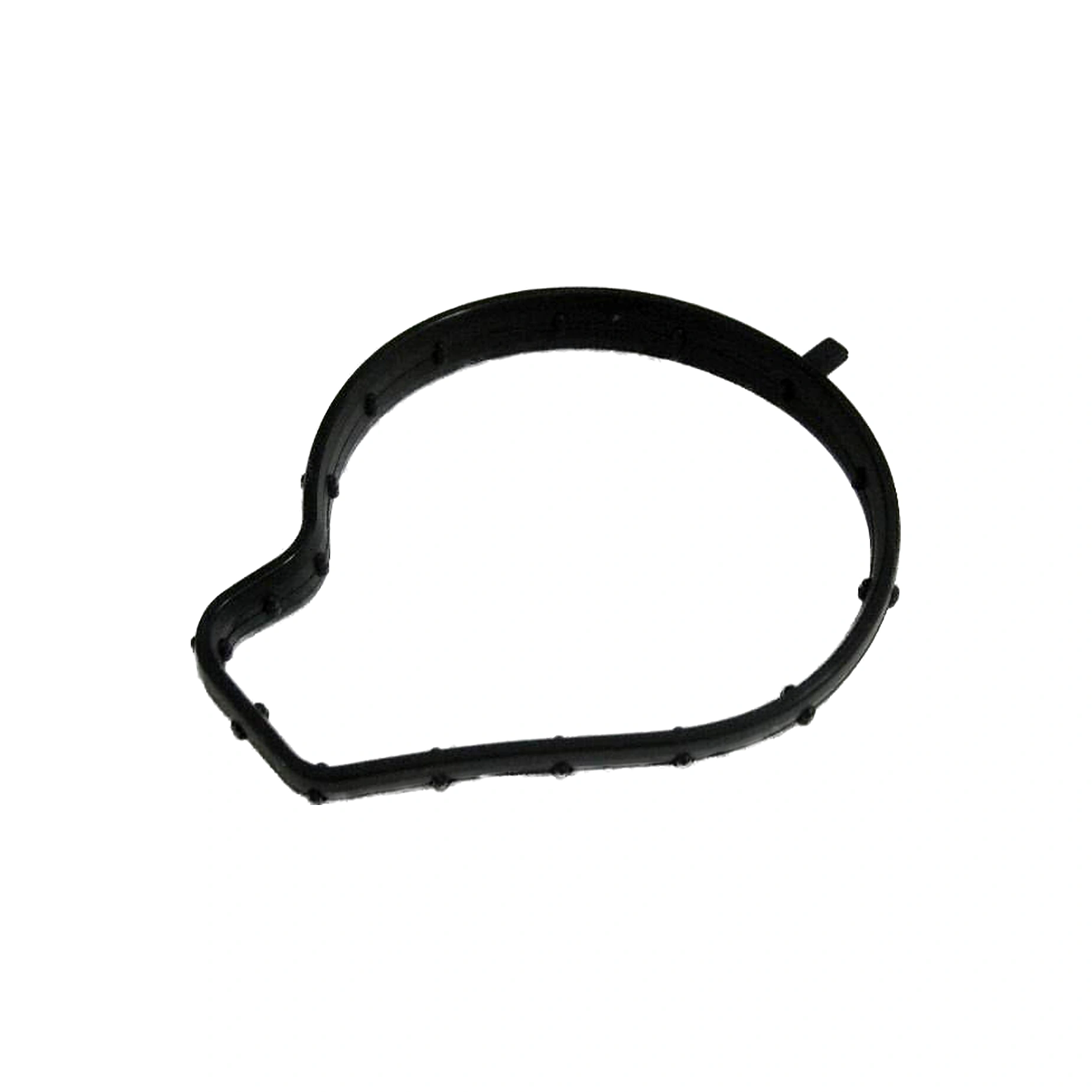

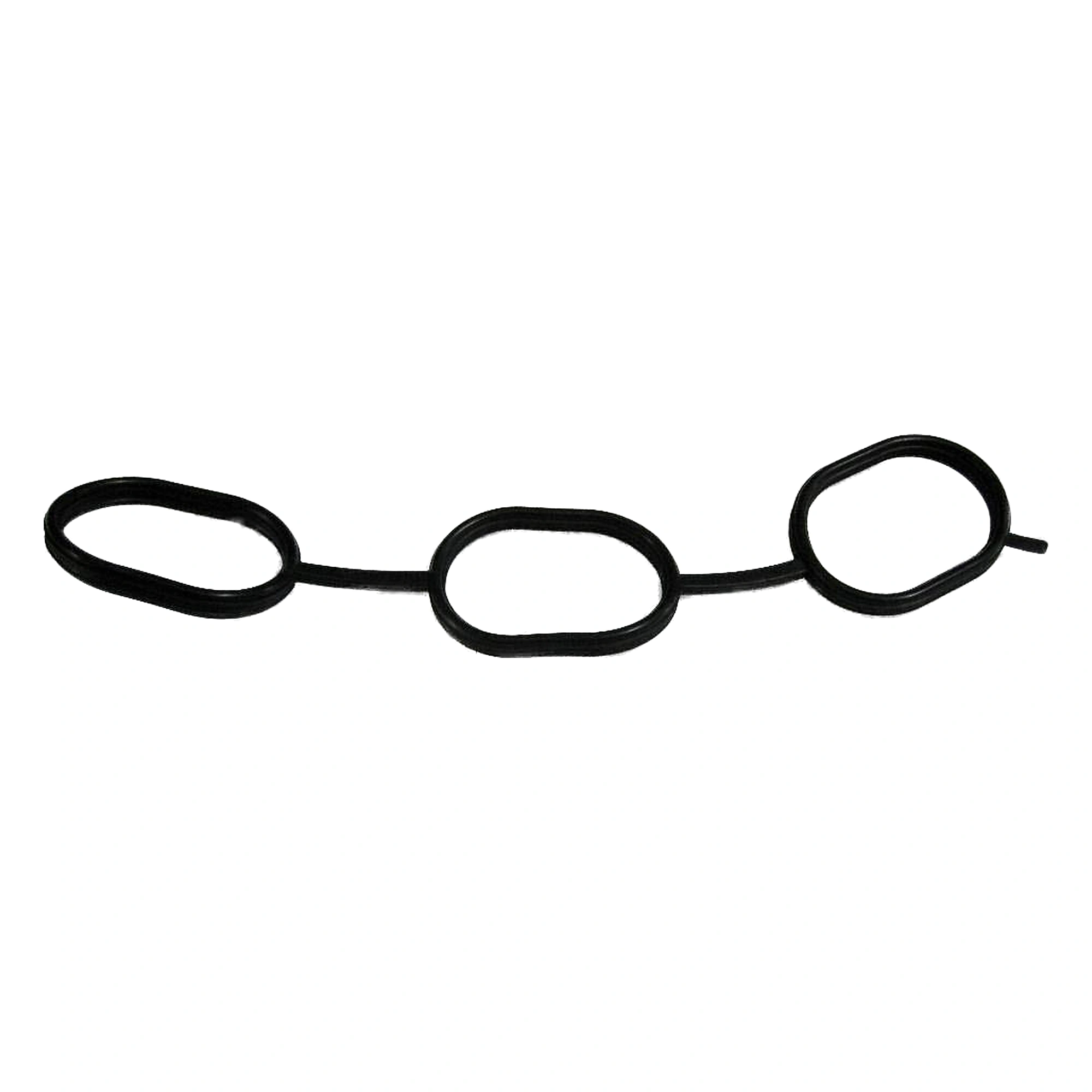

Yes, whenever the manifold or the throttle body has been removed. These gaskets are compressed on first fitting and do not spring back, so a reused one leaves a path for unmetered air that shows as lean fuel trim, an unstable idle and sometimes a whistle. They are among the cheapest parts in this category, and the labour of doing the job twice is not. Order the gasket and the washers with any manifold work.

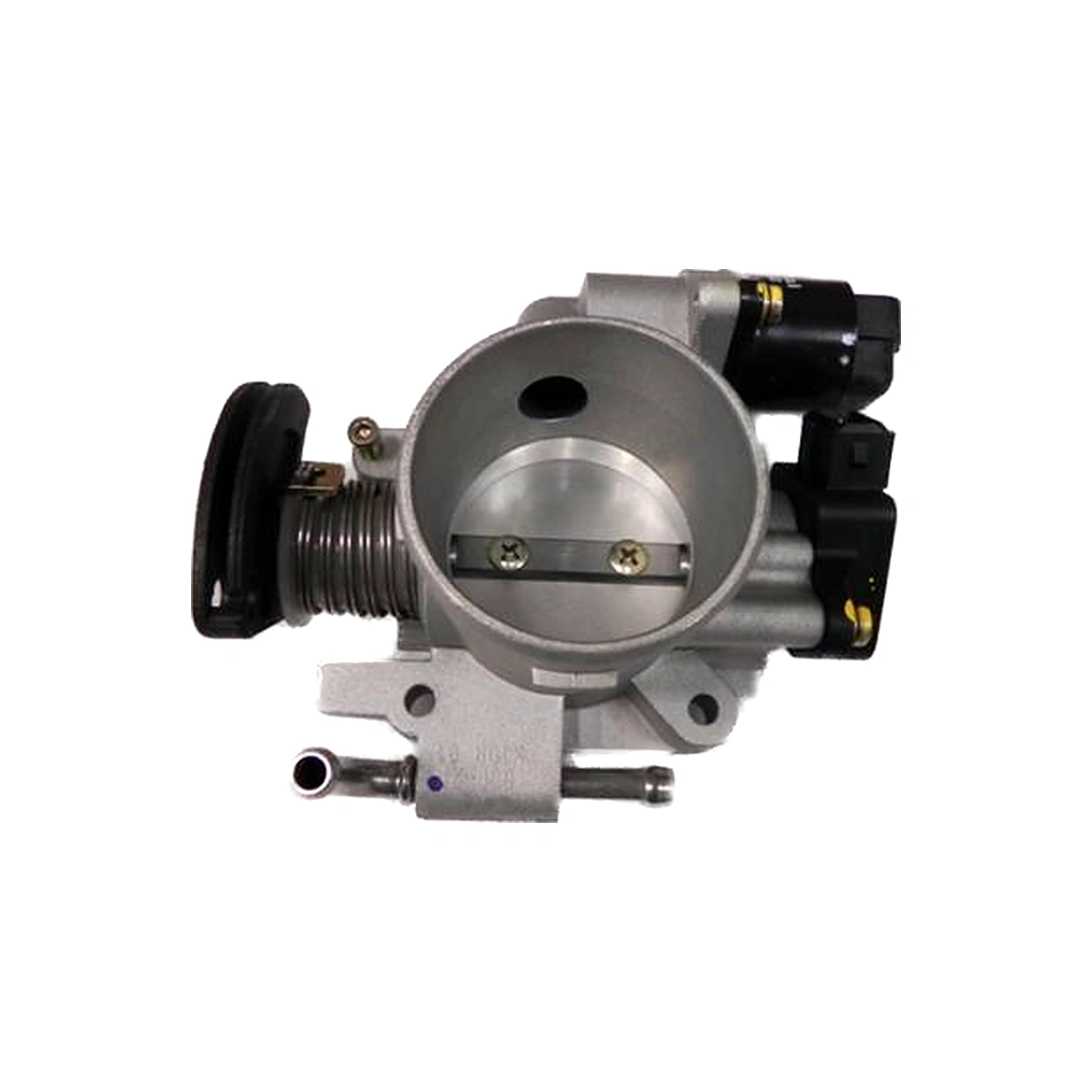

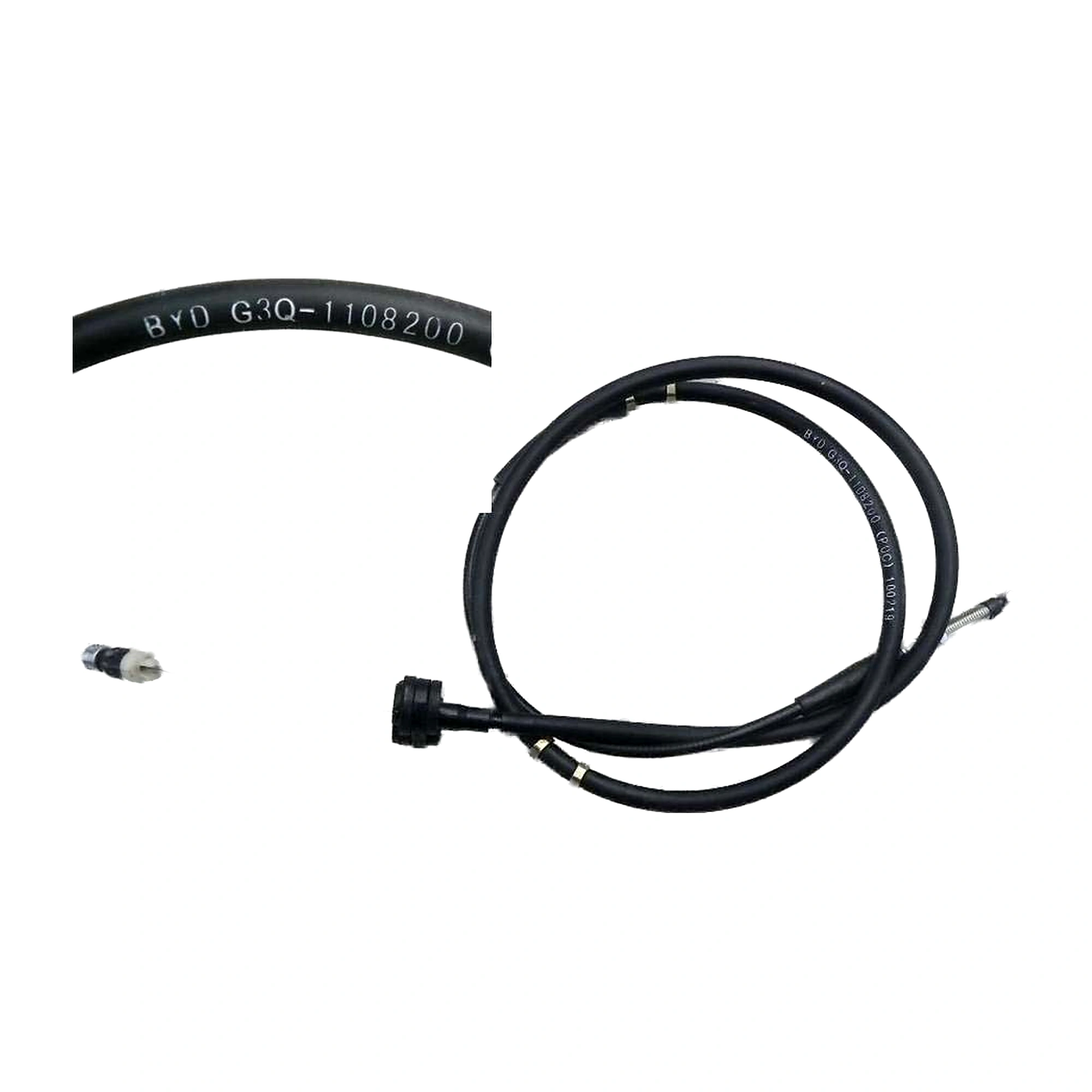

On a cable operated throttle, that is the cable. The inner cable corrodes inside its outer sheath, particularly where the outer has cracked and let water in, and the result is a pedal that feels heavy, returns slowly or sticks at partial throttle. Do not simply lubricate a corroded cable, because a throttle that sticks open is dangerous. Replace the cable assembly, route it exactly as the original ran, and check that the pedal returns fully and freely before driving.

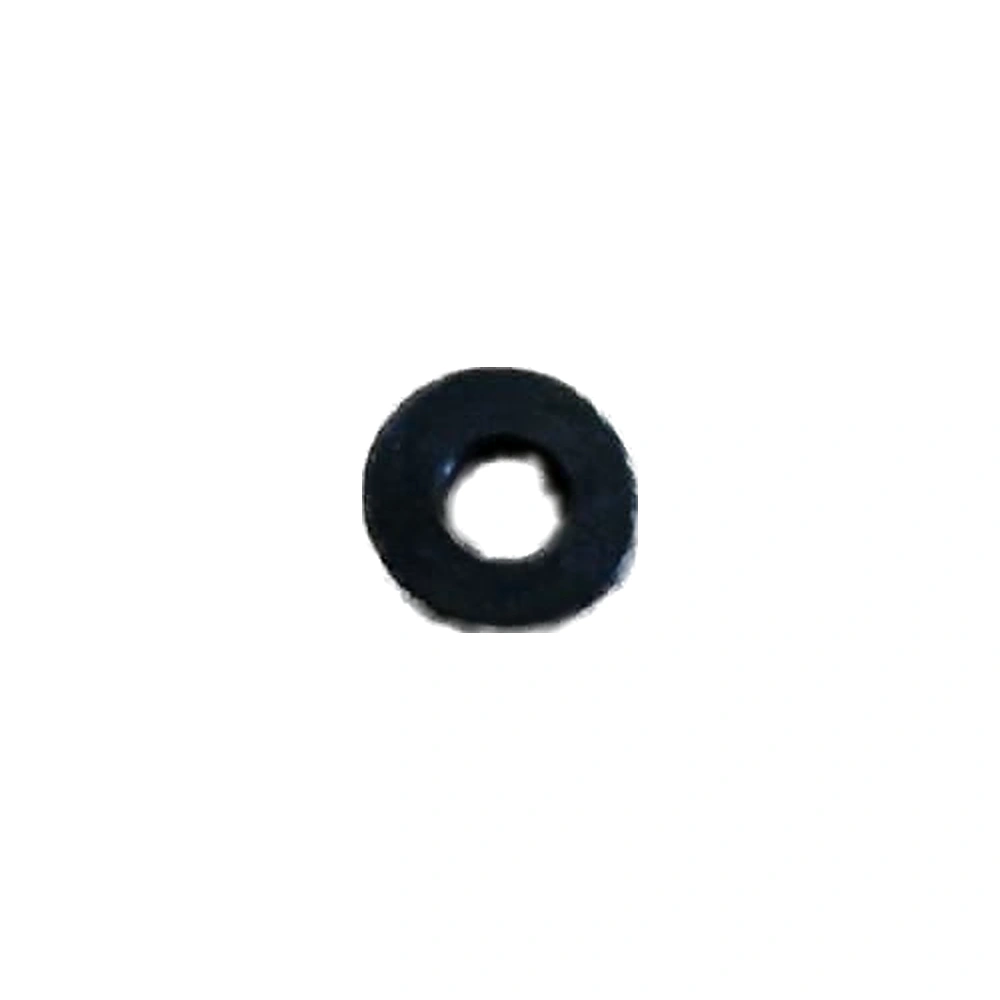

The spacer blocks listed here are the factory items, which usually serve as thermal insulators between the manifold and the throttle body rather than as performance parts. Aftermarket spacers sold for power gains do very little on an engine with a modern intake design and can alter the geometry the fuelling map was calibrated against. Fit the factory reference where one is specified, since removing it can allow heat to soak into the throttle body and change idle behaviour.

Yes. Throttle bodies and intake manifolds are ordered per engine variant and the volumes are modest, so a fair number are listed for enquiry. Send the number and the engine code. Ask whether the throttle body needs a relearn after fitting, because most electronic units do and an idle that hunts after the swap is almost always a missed adaptation rather than a faulty part. Order the manifold gasket and the O rings with it. Those are the single most common reason an engine runs worse after the work than before it, since a reused gasket admits unmetered air.
